Model Fine-tuning Process

Qwen3-4B Model Fine-tuning Comprehensive Guide

This document provides a detailed guide to the complete process of fine-tuning the Qwen3-4B-Thinking-2507 model, from environment setup to model deployment.

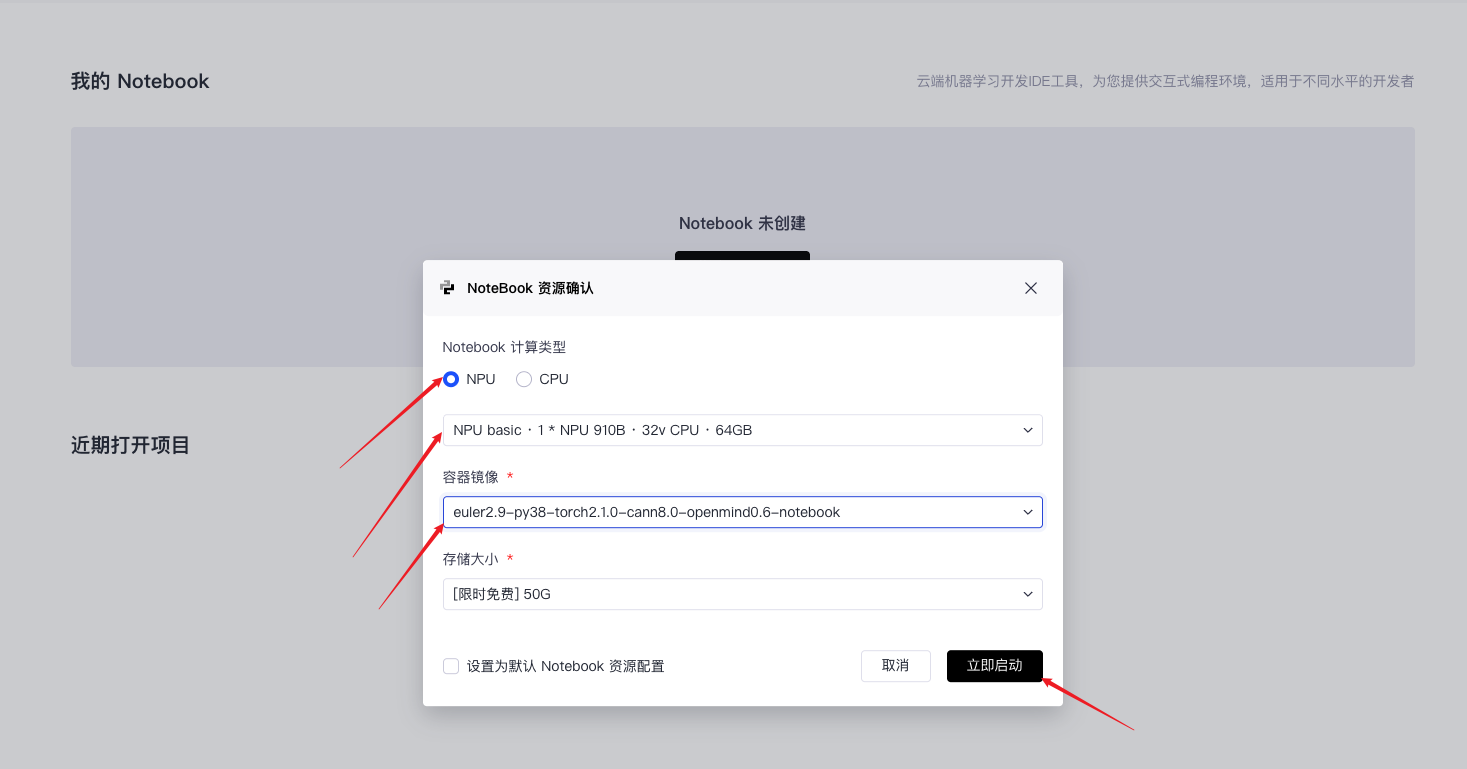

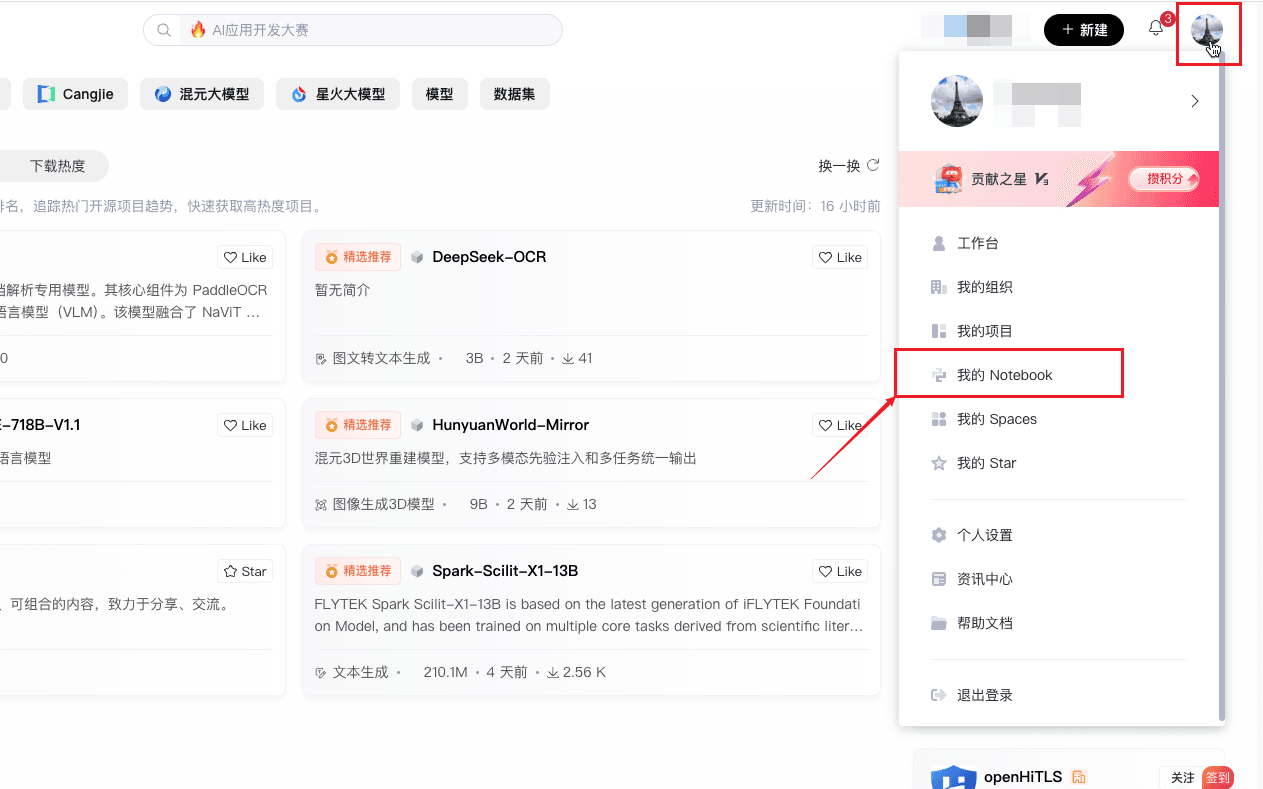

First, Start the Notebook Service

Follow the interface below to start Jupyter Notebook:

Table of Contents

1. Environment Installation
2. Model Download
3. Dataset Preparation
4. Model Fine-tuning
5. Effect Evaluation
6. Model Deployment

---

1. Environment Installation

1.1 Install Miniconda

Windows System:

1. Visit the Miniconda official website to download the installation package
2. Run the installer and complete the installation as instructed
3. Reopen the command prompt

macOS/Linux System:

# macOS
brew install miniconda

# Linux
wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh
bash Miniconda3-latest-Linux-x86_64.sh
source ~/.bashrc

1.2 Create Python Environment

# Create and activate the environment
conda create -n myenv python=3.10
conda activate myenv

# Verify the installation
python --version

1.3 Configure Jupyter Notebook

# Install Jupyter
pip install jupyter ipykernel ipywidgets

# Register the kernel
python -m ipykernel install --user --name=myenv --display-name="Python (myenv)"

# Start Notebook
jupyter notebook

Important Note: In the Notebook, select Python (myenv) kernel

1.4 Install Dependency Packages

Run in the activated myenv environment:

# Install all dependencies at once
pip install datasets==2.21.0 addict swanlab accelerate transformers numpy==1.24.4 scipy openmind-hub modelscope torch pandas torch_npu==2.5.1

1.5 Environment Verification

Run in the first cell of Jupyter Notebook:

import sys
import os

# Configure environment variables
os.environ["OPENMIND_HUB_ENDPOINT"] = "https://hub.gitcode.com"

# Verify main packages
packages = ['torch', 'transformers', 'datasets', 'swanlab', 'openmind_hub']
for pkg in packages:
    try:
        module = __import__(pkg)
        print(f"✓ {pkg}: {getattr(module, '__version__', 'installed')}")
    except ImportError:
        print(f"✗ {pkg}: Not installed")

---

2. Model Download

2.1 Download Qwen3-4B-Thinking-2507

from openmind_hub import snapshot_download
import os

# Set environment variable
os.environ["OPENMIND_HUB_ENDPOINT"] = "https://hub.gitcode.com"

# Download model (note the path format)
snapshot_download(
    "hf_mirrors%2FQwen/Qwen3-4B-Thinking-2507",
    local_dir='./model/Qwen3-4B-Thinking-2507'
)

After downloading, the model will be saved in the ./model/Qwen3-4B-Thinking-2507/ directory.

---

3. Dataset Preparation

3.1 Load and Process Data

from modelscope.msdatasets import MsDataset
import json
import random

# Set random seed
random.seed(42)

# Load medical dataset
ds = MsDataset.load('krisfu/delicate_medical_r1_data', subset_name='default', split='train')
data_list = list(ds)

# Data split (9:1)
random.shuffle(data_list)
split_idx = int(len(data_list) * 0.9)
train_data = data_list[:split_idx]
val_data = data_list[split_idx:]

# Save data
for data, filename in [(train_data, 'train.jsonl'), (val_data, 'val.jsonl')]:
    with open(filename, 'w', encoding='utf-8') as f:
        for item in data:
            json.dump(item, f, ensure_ascii=False)
            f.write('\n')

print(f"Training set: {len(train_data)} items, Validation set: {len(val_data)} items")

---

4. Model Fine-tuning

4.1 SwanLab Configuration

SwanLab is used to monitor the training process:

1. Visit the SwanLab official website to register and obtain an API Key
2. Log in in the Notebook:

import swanlab
swanlab.login(api_key="YOUR_API_KEY", save=True)

4.2 Prepare Training Code

import json
import pandas as pd
import torch
import torch_npu
from datasets import Dataset
from transformers import AutoTokenizer, AutoModelForCausalLM, TrainingArguments, Trainer, DataCollatorForSeq2Seq
import os

# Project configuration
os.environ["SWANLAB_PROJECT"] = "qwen3-sft-medical"
PROMPT = "You are a medical expert. You need to provide a thinking-based answer according to the user's question."
MAX_LENGTH = 2048

# Data conversion function
def dataset_jsonl_transfer(origin_path, new_path):
    messages = []
    with open(origin_path, "r") as file:
        for line in file:
            data = json.loads(line)
            output = f"<think>{data['think']}</think> \n {data['answer']}"
            message = {
                "instruction": PROMPT,
                "input": data["question"],
                "output": output,
            }
            messages.append(message)

    with open(new_path, "w", encoding="utf-8") as file:
        for message in messages:
            file.write(json.dumps(message, ensure_ascii=False) + "\n")

# Preprocessing function
def process_func(example):
    instruction = tokenizer(
        f"<|im_start|>system\n{PROMPT}<|im_end|>\n<|im_start|>user\n{example['input']}<|im_end|>\n<|im_start|>assistant\n",
        add_special_tokens=False,
    )
    response = tokenizer(f"{example['output']}", add_special_tokens=False)
    input_ids = instruction["input_ids"] + response["input_ids"] + [tokenizer.pad_token_id]
    attention_mask = instruction["attention_mask"] + response["attention_mask"] + [1]
    labels = [-100] * len(instruction["input_ids"]) + response["input_ids"] + [tokenizer.pad_token_id]

    # Truncation handling
    if len(input_ids) > MAX_LENGTH:
        input_ids = input_ids[:MAX_LENGTH]
        attention_mask = attention_mask[:MAX_LENGTH]
        labels = labels[:MAX_LENGTH]

    return {"input_ids": input_ids, "attention_mask": attention_mask, "labels": labels}

4.3 Load Model and Data

# Load model
tokenizer = AutoTokenizer.from_pretrained(
    "./model/Qwen3-4B-Thinking-2507",
    use_fast=False,
    trust_remote_code=True
)
model = AutoModelForCausalLM.from_pretrained(
    "./model/Qwen3-4B-Thinking-2507",
    torch_dtype=torch.bfloat16
).to("npu:0")
model.enable_input_require_grads()

# Process dataset
dataset_jsonl_transfer("train.jsonl", "train_format.jsonl")
dataset_jsonl_transfer("val.jsonl", "val_format.jsonl")

# Create training data
train_df = pd.read_json("train_format.jsonl", lines=True)
train_dataset = Dataset.from_pandas(train_df).map(process_func, remove_columns=train_df.columns)

eval_df = pd.read_json("val_format.jsonl", lines=True)
eval_dataset = Dataset.from_pandas(eval_df).map(process_func, remove_columns=eval_df.columns)

4.4 Training Configuration and Start Training

# Training parameters
args = TrainingArguments(
    output_dir="./output/Qwen3-4B",
    per_device_train_batch_size=1,
    per_device_eval_batch_size=1,
    gradient_accumulation_steps=4,
    eval_strategy="steps",
    eval_steps=100,
    logging_steps=10,
    num_train_epochs=2,
    save_steps=400,
    learning_rate=1e-4,
    save_on_each_node=True,
    gradient_checkpointing=True,
    report_to="swanlab",
    run_name="qwen3-4B-medical",
)

# Create trainer
trainer = Trainer(
    model=model,
    args=args,
    train_dataset=train_dataset,
    eval_dataset=eval_dataset,
    data_collator=DataCollatorForSeq2Seq(tokenizer=tokenizer, padding=True),
)

# Start training
trainer.train()

---

5. Effect Evaluation

5.1 Inference Test

def predict(messages, model, tokenizer):
    device = "npu:0"
    text = tokenizer.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)
    model_inputs = tokenizer([text], return_tensors="pt").to(device)

    generated_ids = model.generate(model_inputs.input_ids, max_new_tokens=MAX_LENGTH)
    generated_ids = [output_ids[len(input_ids):] for input_ids, output_ids in zip(model_inputs.input_ids, generated_ids)]

    return tokenizer.batch_decode(generated_ids, skip_special_tokens=True)[0]

# Test sample
test_df = pd.read_json("val_format.jsonl", lines=True)[:3]
test_results = []

for _, row in test_df.iterrows():
    messages = [
        {"role": "system", "content": row['instruction']},
        {"role": "user", "content": row['input']}
    ]
    response = predict(messages, model, tokenizer)

    result = f"Question: {row['input']}\nAnswer: {response}\n{'='*50}"
    test_results.append(swanlab.Text(result))
    print(result)

# Record to SwanLab
swanlab.log({"Test Results": test_results})
swanlab.finish()

5.2 Evaluation Metrics

The fine-tuned model should have the following capabilities:

• Understand medical professional questions
• Provide structured thinking process (<think> tag)
• Give accurate medical advice
• Maintain professional medical terminology

---

6. Model Deployment

6.1 Upload to AtomGit

Method 1: Using OpenMind Hub

from openmind_hub import push_to_hub

push_to_hub(
    repo_id="your_username/qwen3-4b-medical-finetuned",
    folder_path="./output/Qwen3-4B",
    token="your_gitcode_token"
)

Method 2: Git Command

cd ./output/Qwen3-4B
git init
git remote add origin https://gitcode.com/your_username/qwen3-4b-medical-finetuned.git
git add .
git commit -m "Add fine-tuned Qwen3-4B medical model"
git push -u origin main

6.2 Create Model Description

Create a README.md file describing the model:

# Qwen3-4B Medical Fine-tuned Model

## Model Information
- **Base Model**: Qwen3-4B-Thinking-2507
- **Training Data**: Medical Question-and-Answer Dataset
- **Training Rounds**: 2
- **Learning Rate**: 1e-4

## Usage Method
```python
from transformers import AutoTokenizer, AutoModelForCausalLM

tokenizer = AutoTokenizer.from_pretrained("your_username/qwen3-4b-medical-finetuned")
model = AutoModelForCausalLM.from_pretrained("your_username/qwen3-4b-medical-finetuned")

---

Summary

This guide covers the entire process of fine-tuning the Qwen3-4B medical model:

1. Environment Setup → Conda environment + Jupyter configuration
2. Model Preparation → Download pre-trained model
3. Data Processing → Preprocess medical dataset
4. Model Training → Fine-tuning training configuration
5. Effect Evaluation → Inference testing evaluation
6. Model Publication → Upload to AtomGit platform

Frequently Asked Questions

Q: What to do if there is not enough memory during training? A: Reduce per_device_train_batch_size or increase gradient_accumulation_steps

Q: How to choose different kernels? A: In Jupyter, select Kernel → Change kernel → Python (myenv)

Q: What to do if SwanLab shows abnormalities? A: Check if the API Key is correct and whether the network is normal

Q: How to optimize if the model effect is unsatisfactory? A: Adjust learning rate, increase training rounds, or improve data quality

---

Need technical support? Please refer to the detailed explanations in each section or contact the technical team.
